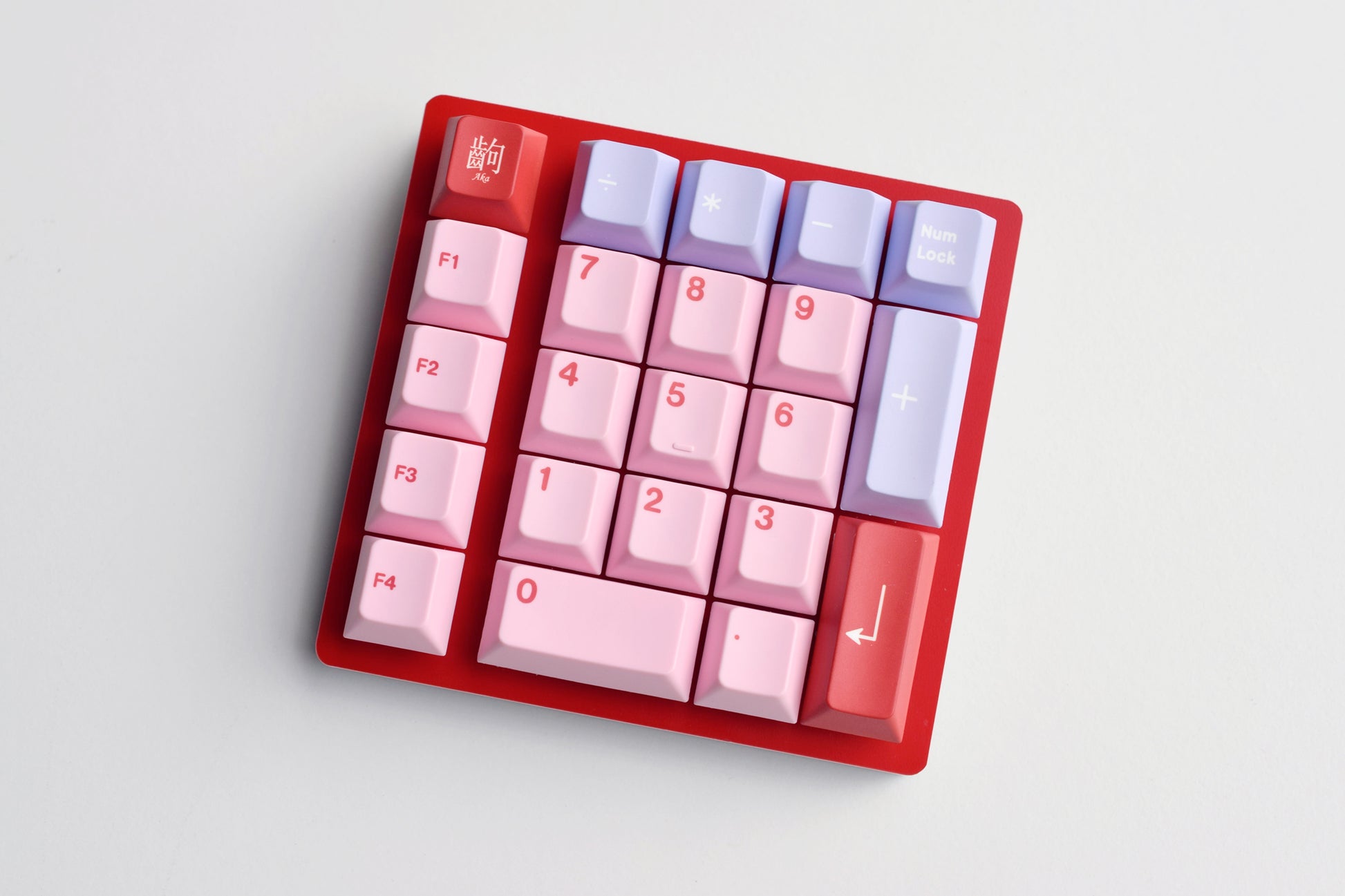

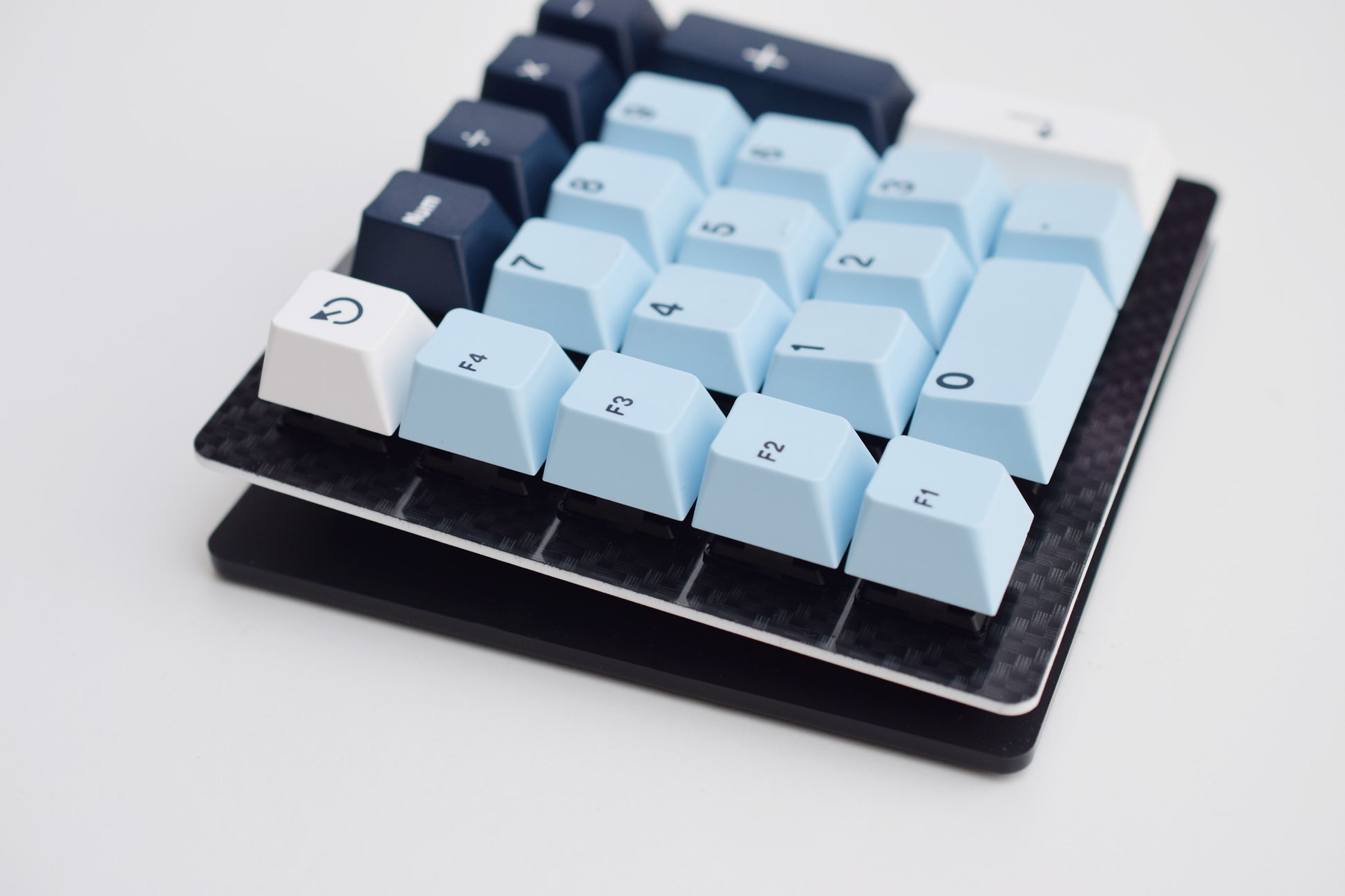

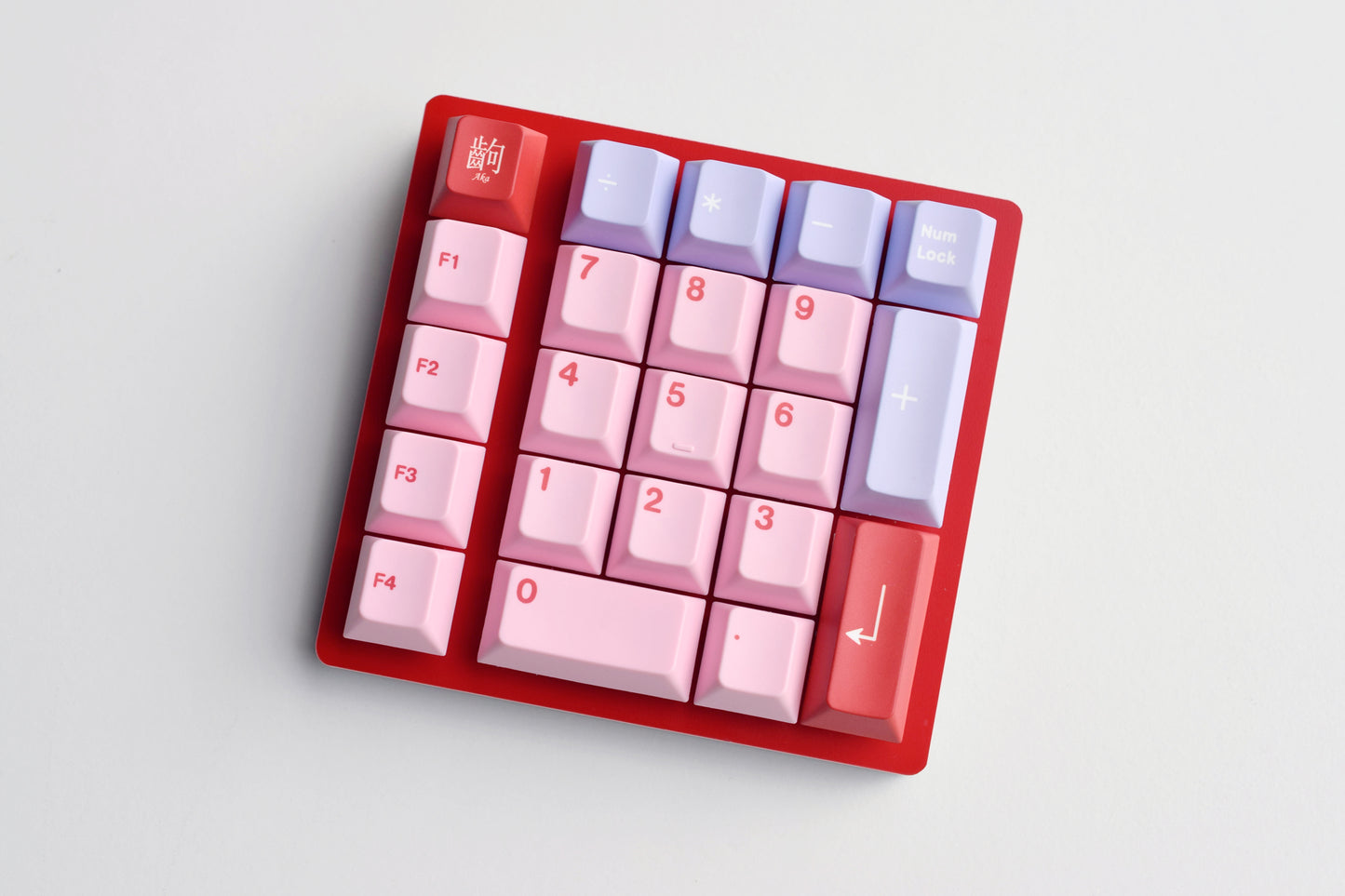

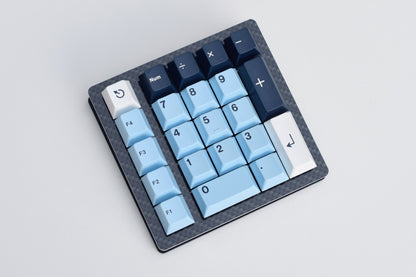

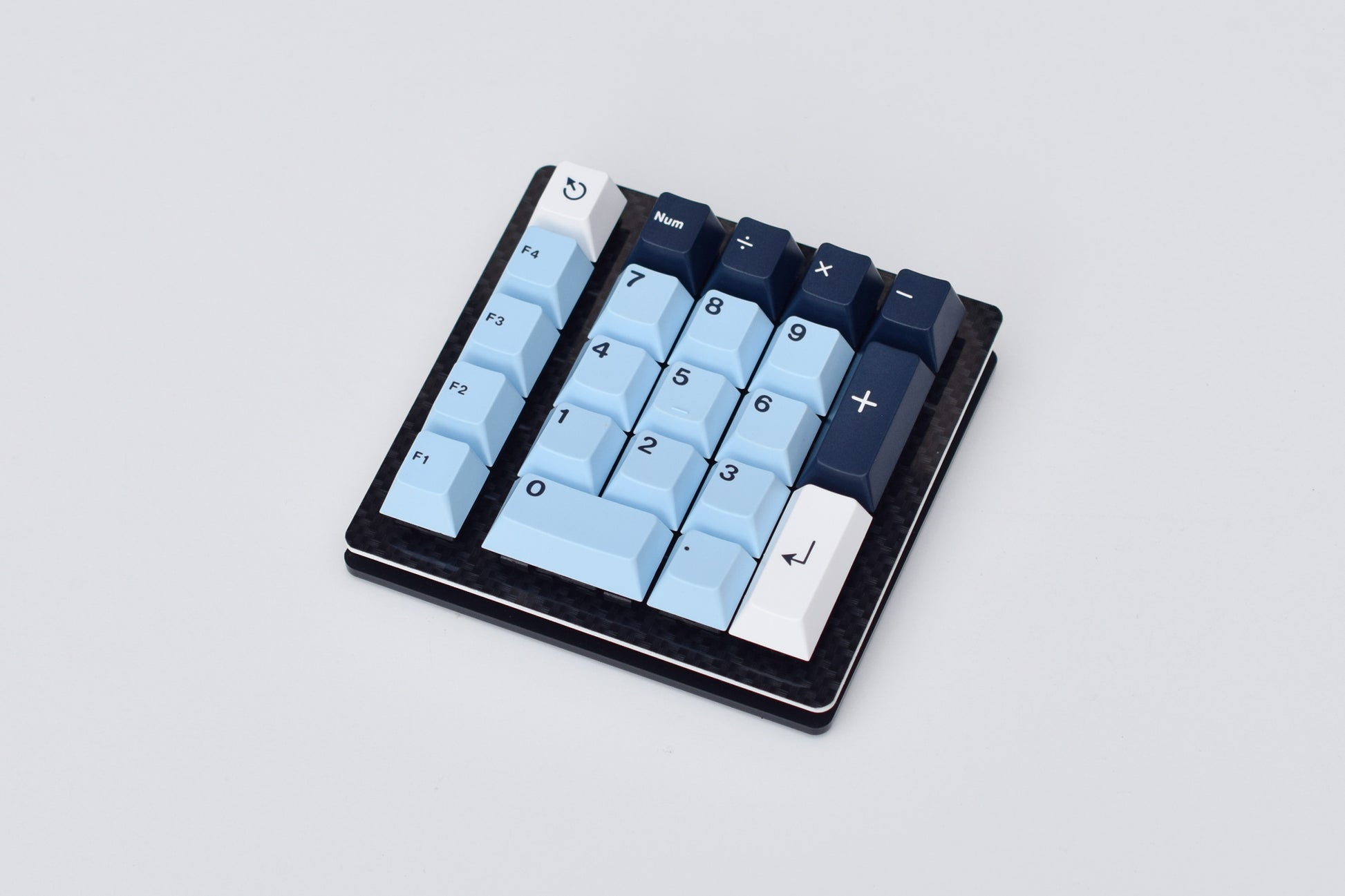

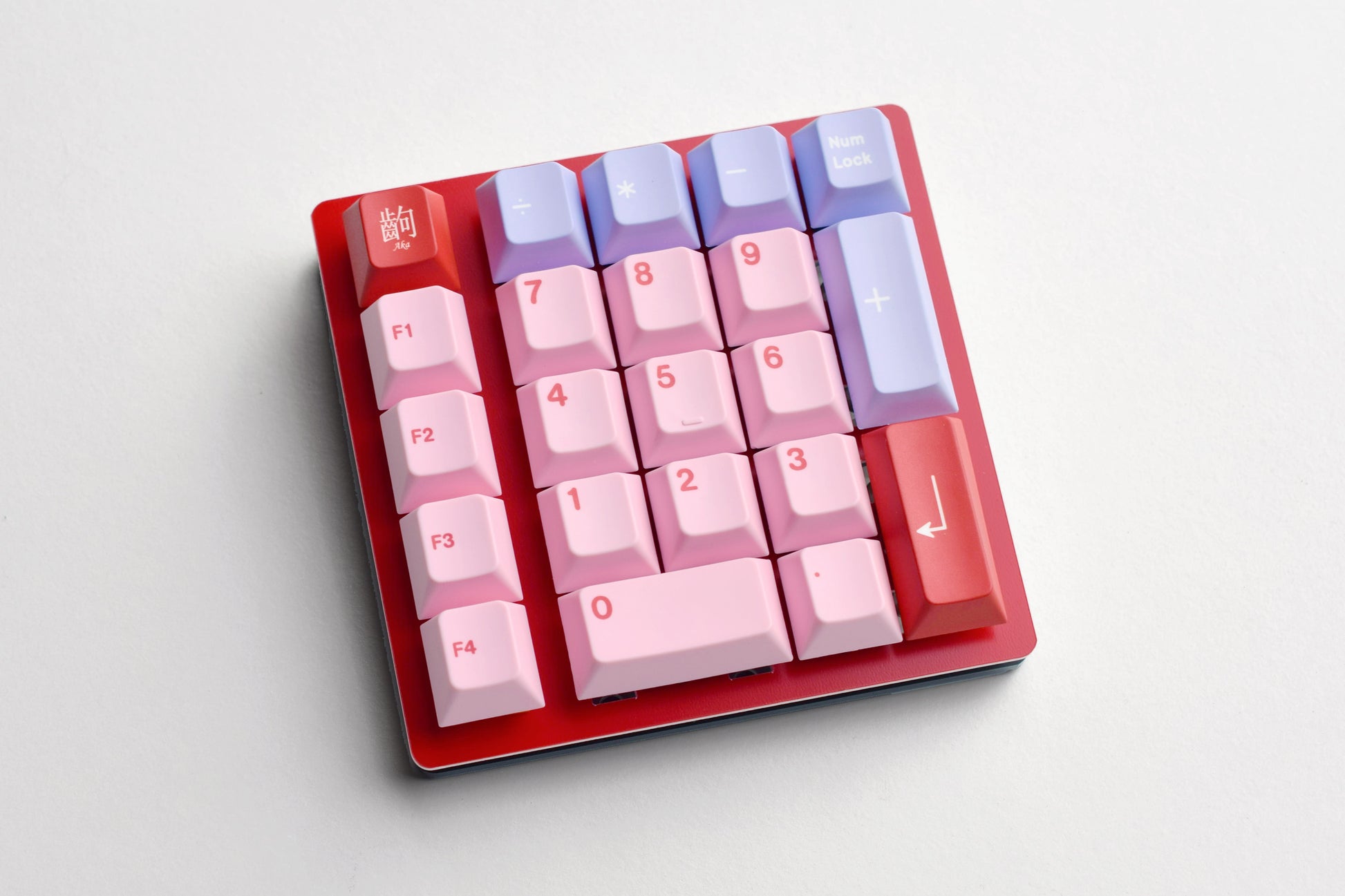

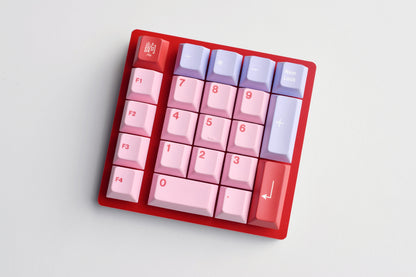

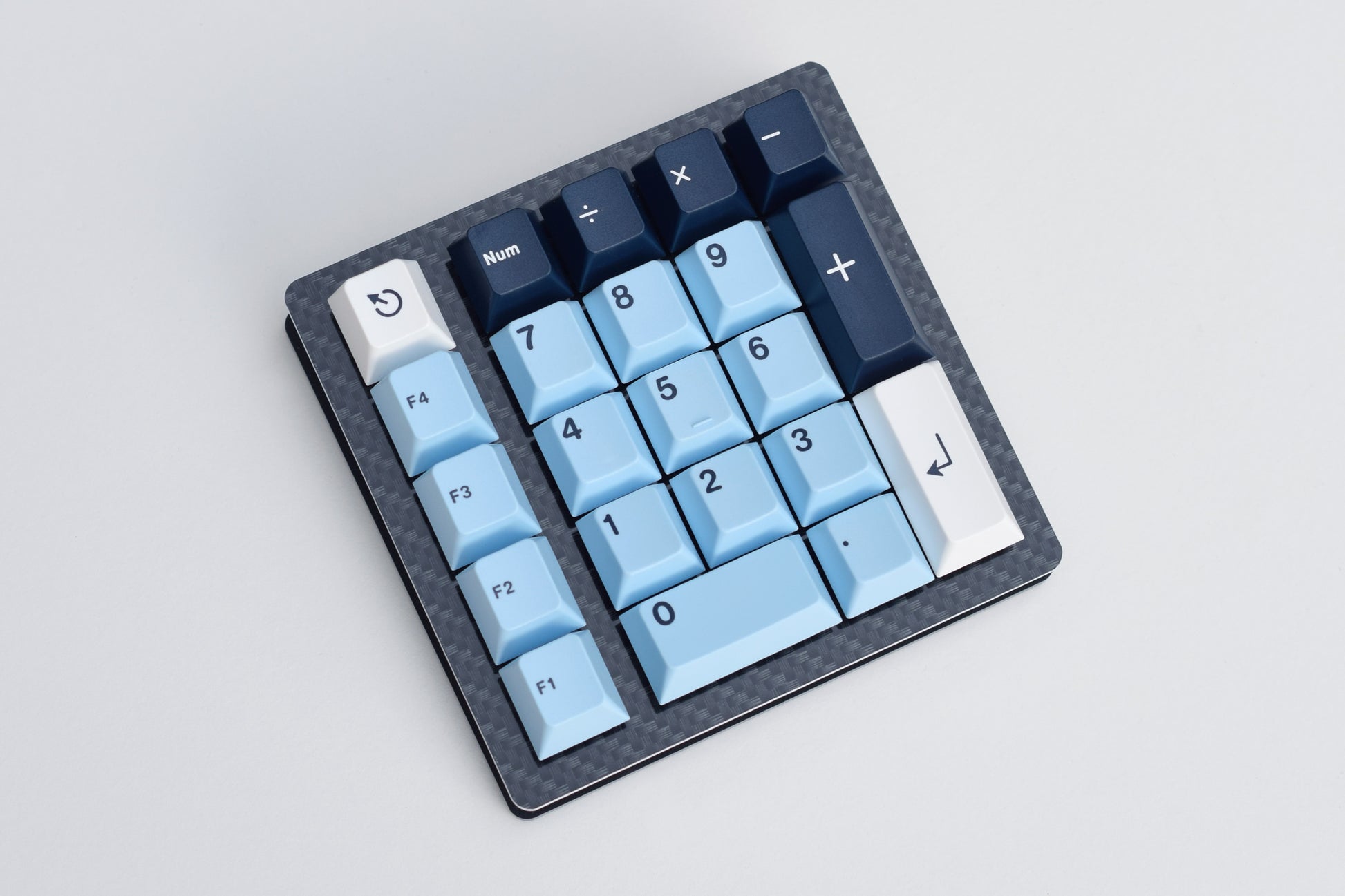

Snagpad Plus Numpad

This is a low-cost, DIY mechanical Numpad kit with straight forward assembly. The kit teaches users how to solder through-hole and surface-mount components onto a PCB.

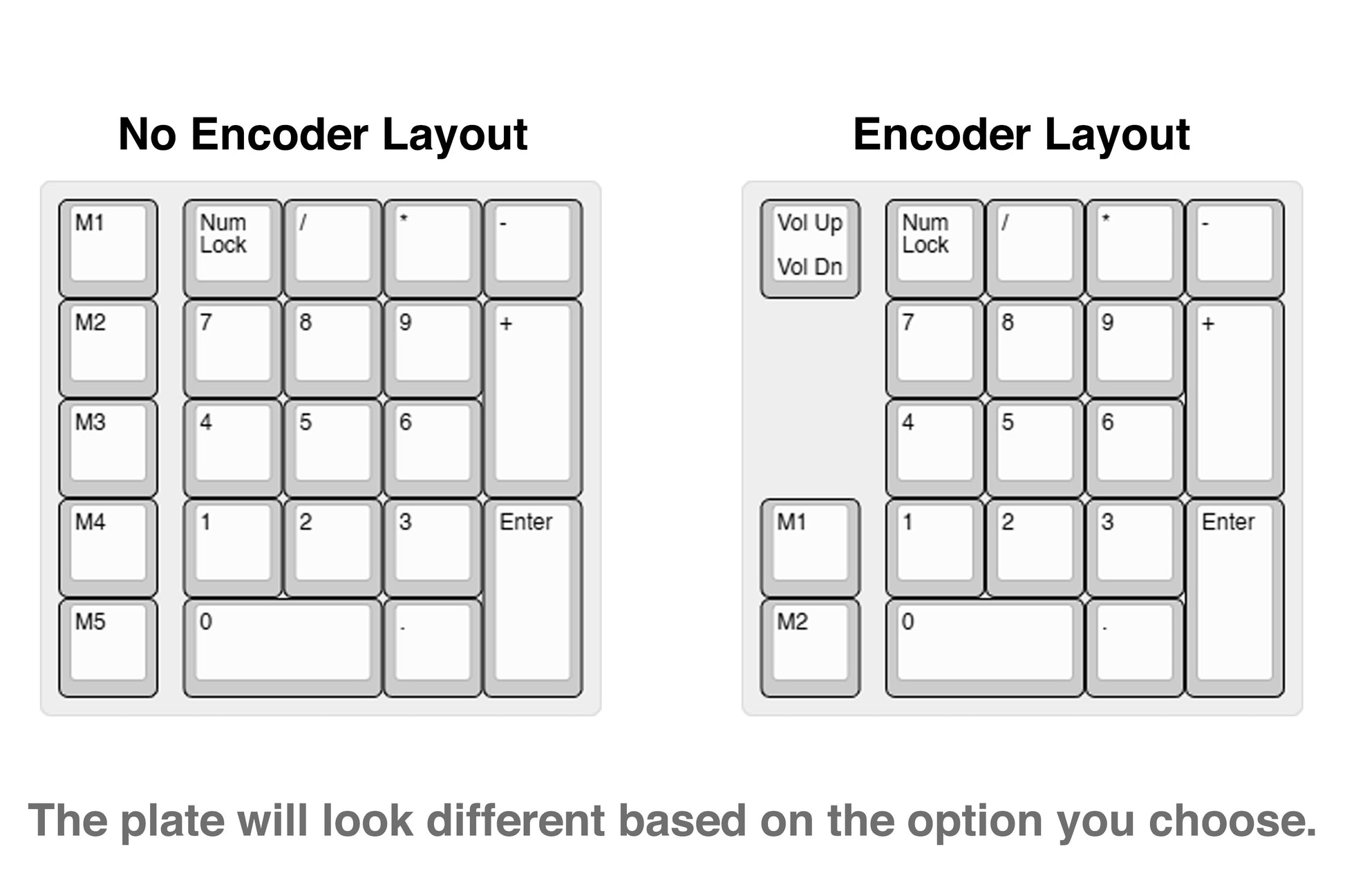

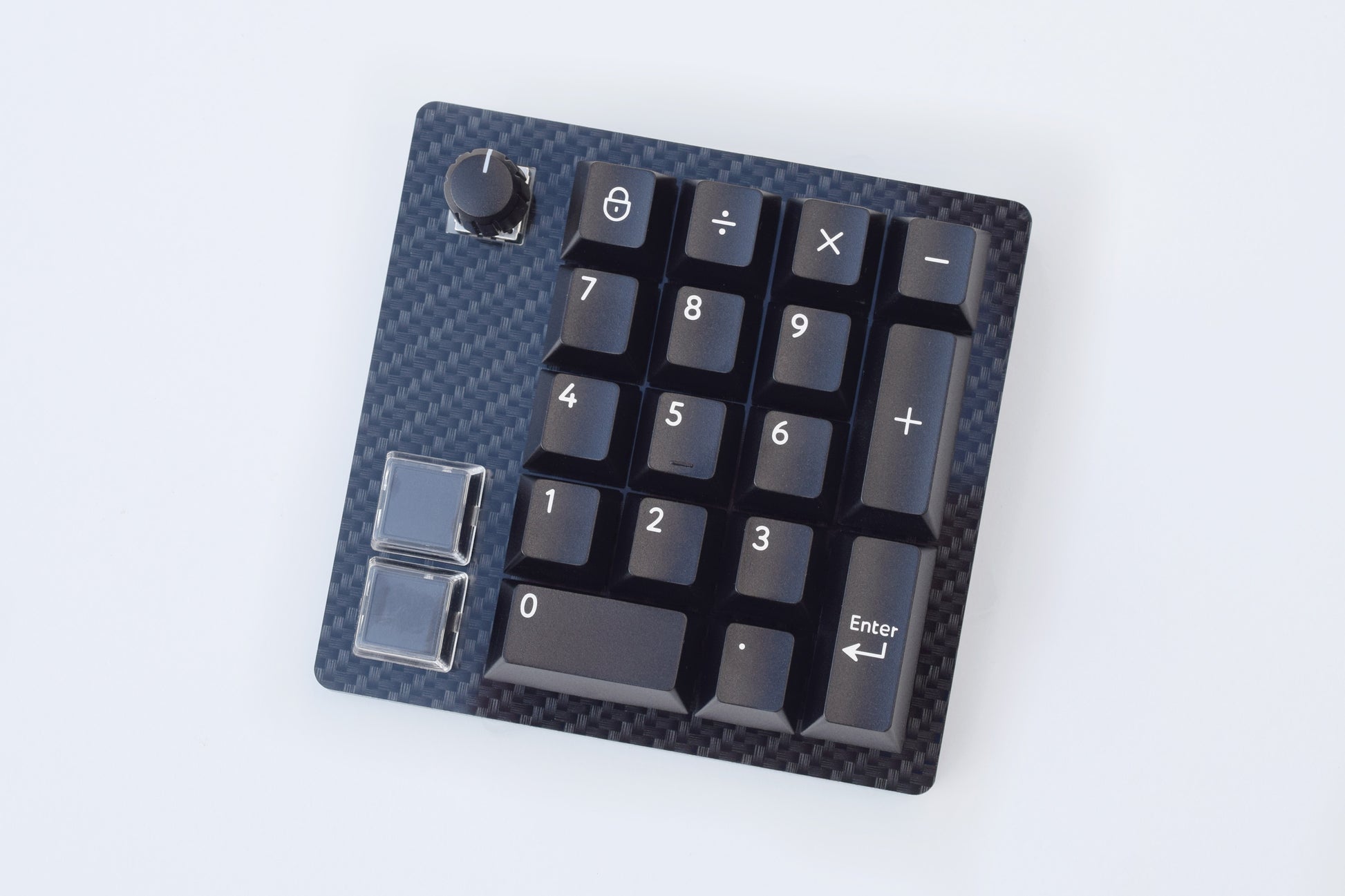

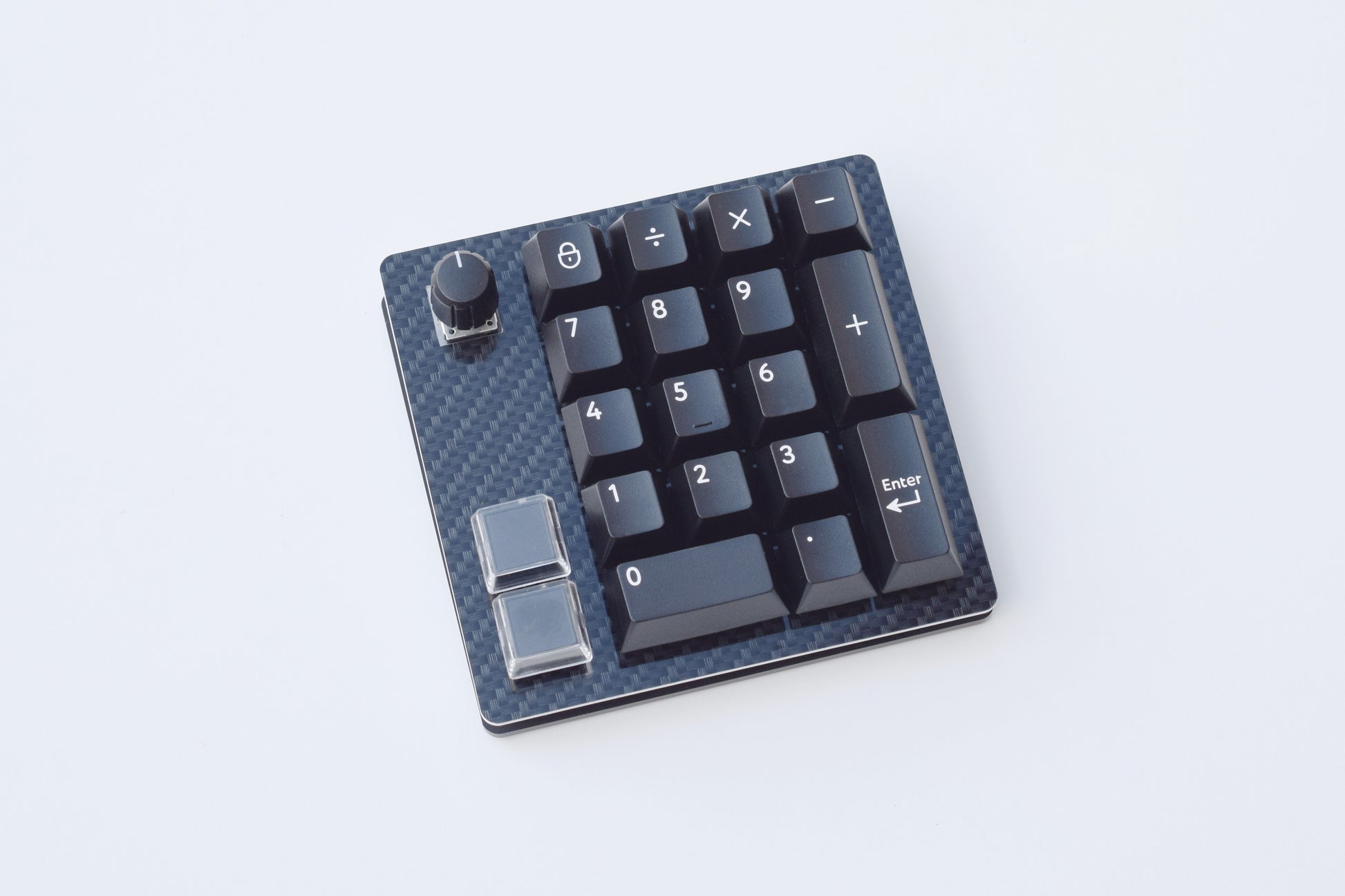

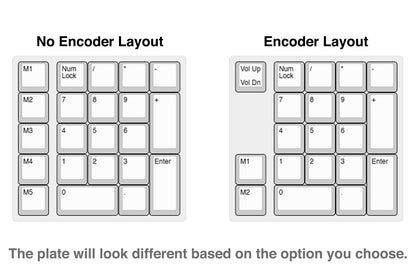

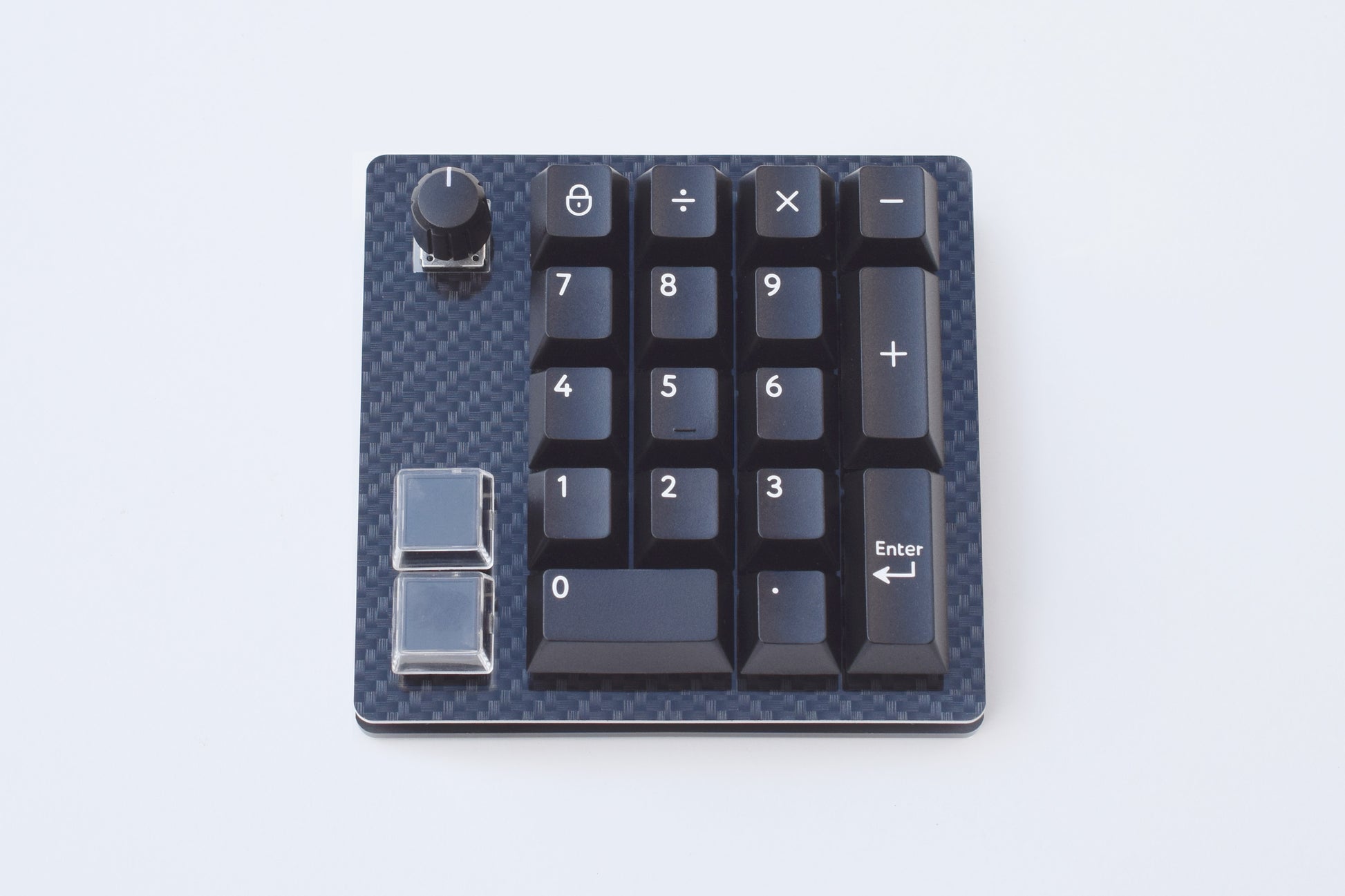

Unlike other numpads, the Snagpad Plus has a functional rotary encoder and a few extra keys to help boost your productivity. Most importantly, the keyboard is programable online through VIA so you can easily adjust functionality to suit your needs.

Build Guide: Coming Soon

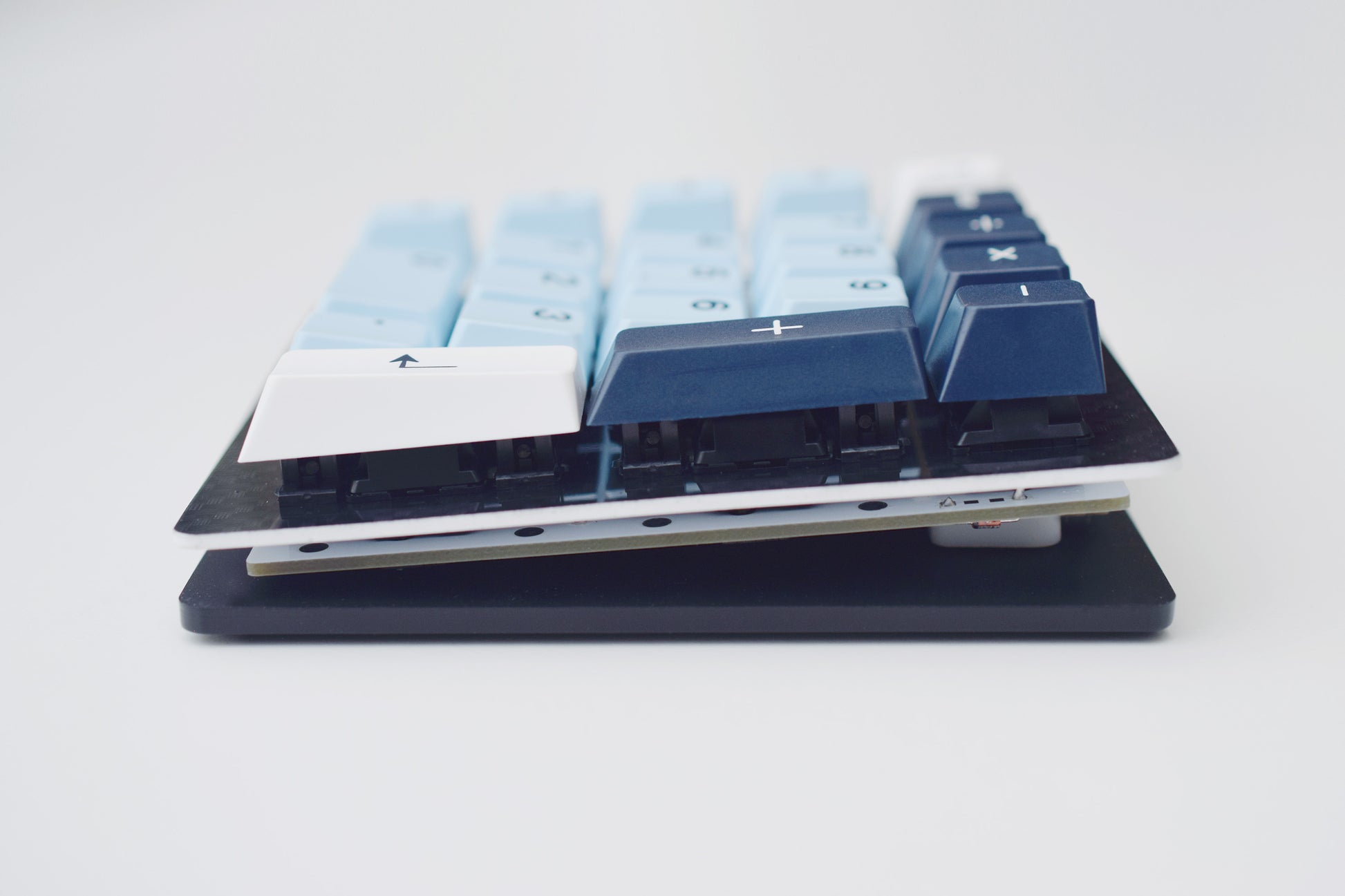

Dimensions: 11.3cm x 10.8cm x 1.7cm (front height), 2.3cm (rear height)

Kit Includes:

• 1x Plate (1.5mm impact modified acrylic)
• 1x Linear or Tactile Rotary Encoder
• 1x Rotary Encoder Knob (plastic)
• 1x 3D Printed Standoff Holder
• 1x Base (3mm acrylic)

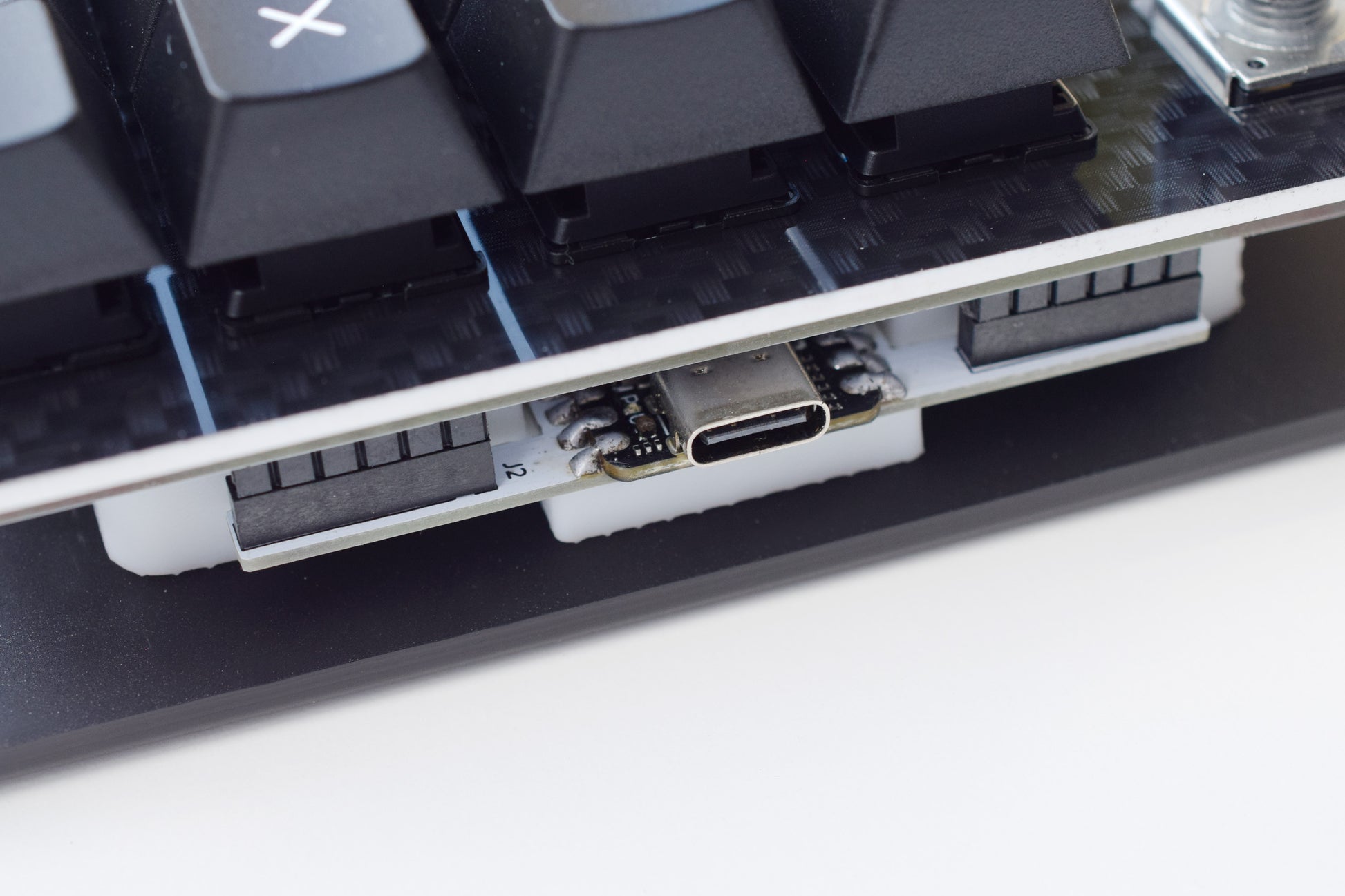

• 1x Xiao Seeed RP2040

• 1x PCB (main base)
• 1x PCB (controller)

• 2x Standoffs
• 3x Stabilisers
• 4x Header Pins
• 2x Bumpons (PCB)
• 4x Bumpons (base)

• 22x Durock Hotswap Sockets
• 22x 1n4148 Diodes (through hole)


Not Included:

• 22x Mechanical Switches
• USB C Cable
• Keycaps

Free Gift:
2x Black 1u Relegendable Keycaps are included with each order. There maybe be some small surface imperfections when viewed at different angles.

From humble, hobbyist origins, the Snagpad Plus arrives six years after the original Snagpad by Don from The Board Podcast — now featuring modern features and extra functionality.

Whether used as a numpad or a macropad, this DIY keyboard kit is sure to boost your productivity. The keys are easy to program without needing to download any additional software, so you can effortlessly change and re-map buttons to suit your daily needs. The extra switches on the left can be set to output custom macros which will help save you time throughout the day. Tired of typing the same sentence/formula/string, repeatedly?

Type it out one last time before saving it to a key then press the button whenever needed.  Unlike most kits where switches are soldered directly to a PCB, these kits utilize hot swap sockets and will allow you to freely test and change switches after soldering. Both Plate (3pin) or PCB mounted (5pin) switches are compatible with this macropad.

An introduction to keyboard and hobbyist concepts; this kit makes for a rewarding weekend project and a great way to practice and learn how to solder. Durock plate mount stabilisers are included in this kit, so all you need to complete the build are switches and keycaps.

Kit requires soldering and does not come pre-assembled
